03/04/04 San Jose, Costa Rica local flight.  Takeoff at  14:07:11 (8:07:11 am CST).





20 flightlines, 217 minutes of data acquired.



Everything is nominal.  Gps altitude is 1600 ft below barometric altitude at beginning of flight.  We will attempt to fly barometric altitudes 2000ft below planned.  Light winds.



Relay #15 in calibration chassis is intermittent.





Tape 04007



Rioplatano45-1 xti1p 40-40-40      Start: 14:52:44      End: 15:03:17





   rioplatano    | T-El F-Alt Spd Trk   Len   Look  Mode   BW  PL   PRFR  DigDly

      45-1       |  100 27.0  420  45 5.7+4.7  45  XTI1P   40  10   1.00    91



      PI      |  Run Start     CPA       Run End     Target    |HDDR Tape# Drift

    UNESCO    |  14  46.73   15  15.3    15  38.87   15  18.4  |04007 |  -1.2

              | -85   0.12  -84  30.8   -84   6.44  -84  34.0  |________________

  March 2004   14:52:44 14:58:27 15:03:17 ___________ <--GMT

    pla.rdf    ___________ 75000 ___________ ___________ <--IDR (A/B)

               ___________ ___________ ___________ ___________ <--Frame Count

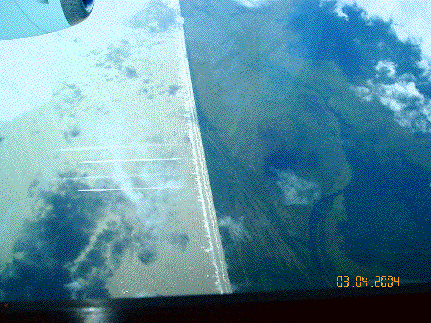

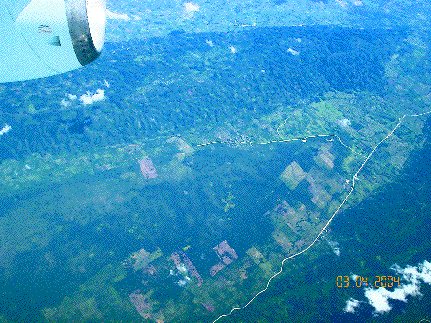

Comments:  Site is Rio Platano, Nicaragua/Honduras.  UNESCO, UNEP World

Conservation Monitoring Centre, National Parks and Wildlife Department, RENARE,

Apartado 2016.



Overcast.  Smooth flight.







AIRSAR





AIRSAR







Rioplatano225-1 xti1p 40-40-40      Start: 15:11:14      End: 15:21:42

rioplatano    | T-El F-Alt Spd Trk   Len   Look  Mode   BW  PL   PRFR  DigDly

      225-1      |  100 27.0  420 225 5.7+4.7  45  XTI1P   40  10   1.00    91



      PI      |  Run Start     CPA       Run End     Target    |HDDR Tape# Drift

    UNESCO    |  15  54.00   15  25.5    15   1.89   15  22.4  | 04007 |0.6

              | -84  11.76  -84  41.3   -85   5.52  -84  38.1  |________________

  March 2004   15:11:14 15:16:57 15:21:42 ___________ <--GMT

    pla.rdf    ___________ 215000 270000 ___________ <--IDR (A/B)

               ___________ ___________ ___________ ___________ <--Frame Count

Comments:  Site is Rio Platano, Nicaragua/Honduras.  UNESCO, UNEP World

Conservation Monitoring Centre, National Parks and Wildlife Department, RENARE,

Apartado 2016.

cloudy, smooth flight, a little bumpy at end.  P-band shows lots of double bounce.





AIRSAR





AIRSAR





AIRSAR





Rioplatano90-1 xti1p  40-40-40      Start: 15:29:47      End: 15:35:43

rioplatano    | T-El F-Alt Spd Trk   Len   Look  Mode   BW  PL   PRFR  DigDly

      90-1       |  100 27.0  420  90 3.4+2.4  45  XTI1P   40  10   1.00    91



      PI      |  Run Start     CPA       Run End     Target    |HDDR Tape# Drift

    UNESCO    |  14  55.02   14  55.0    14  55.02   14  59.4  |04007|0.7

              | -84  39.19  -84  14.4   -83  56.84  -84  14.4  |________________

  March 2004   15:29:47 15:33:14 15:35:43 ___________ <--GMT

    pl2.rdf    ___________ 323000 ___________ ___________ <--IDR (A/B)

               ___________ ___________ ___________ ___________ <--Frame Count

Comments:  Site is south of Rio Platano, Nicaragua/Honduras.



Cloudy, smooth flight.







AIRSAR



AIRSAR



AIRSAR





Usumacinta320-1 xti1p 40-40-40      Start: 16: 28:37     End: 16:46:31

usumacinta    | T-El F-Alt Spd Trk   Len   Look  Mode   BW  PL   PRFR  DigDly

      320-1      |  150 27.0  420 320 9.2+8.2  45  XTI1P   40  10   1.00    91



      PI      |  Run Start     CPA       Run End     Target    |HDDR Tape# Drift

  C. Golden   |  15  57.21   16  46.9    17  31.06   16  44.1  | 04007  | -1.3

              | -89  52.79  -90  35.8   -91  14.50  -90  39.3  |________________

  March 2004   16:28:37 16:37:49 16:46:31 ___________ <--GMT

    usu.rdf    ___________ 478000 ___________ ___________ <--IDR (A/B)

               ___________ ___________ ___________ ___________ <--Frame Count

Comments:  Site is Usumacinta Cultural Landscape, Sierra del Lancandon Mexico

Guatamala border.  Site 15, UPENN





Light clouds.  Smooth line.  Low drift.





AIRSAR



AIRSAR



AIRSAR



AIRSAR





Tape 04008



Usumacinta140-1 xti1p 40-40-40      Start: 16:52:29     End: 17:10:02



   usumacinta    | T-El F-Alt Spd Trk   Len   Look  Mode   BW  PL   PRFR  DigDly

      140-1      |  150 27.0  420 140 9.2+8.2  45  XTI1P   40  10   1.00    91



      PI      |  Run Start     CPA       Run End     Target    |HDDR Tape# Drift

  C. Golden   |  17  23.78   16  34.2    15  49.96   16  37.1  | 04008  |0.7

              | -91  34.82  -90  51.5   -90  13.12  -90  48.0  |________________

  March 2004   16:52:29 17:01:56 17:10:02 ___________ <--GMT

    usu.rdf    ___________ 123000 ___________ <--IDR (A/B)

               ___________ ___________ ___________ ___________ <--Frame Count

Comments:  Site is Usumacinta Cultural Landscape, Sierra del Lancandon Mexico

Guatamala border.  Site 15, UPENN



Light clouds, smooth line.



AIRSAR







AIRSAR



AIRSAR





Usumacinta320-2 xti1p 40-40-40      Start: 17:16:15      End:17:33:40

usumacinta    | T-El F-Alt Spd Trk   Len   Look  Mode   BW  PL   PRFR  DigDly

      320-2      |  150 27.0  420 320 9.2+8.2  45  XTI1P   40  10   1.00    91



      PI      |  Run Start     CPA       Run End     Target    |HDDR Tape# Drift

  C. Golden   |  15  53.70   16  43.4    17  27.56   16  40.6  | 04008  |-.7

              | -89  57.14  -90  40.2   -91  18.82  -90  43.6  |________________

  March 2004   17:16:15 17:25:18 17:33:40 ___________ <--GMT

    usu.rdf    ___________ 352000 ___________ ___________ <--IDR (A/B)

               ___________ ___________ ___________ ___________ <--Frame Count

Comments:  Site is Usumacinta Cultural Landscape, Sierra del Lancandon Mexico

Guatamala border.  Site 15, UPENN

Mostly clear, smooth lines, light winds. Motion very good.







AIRSAR





AIRSAR





AIRSAR





Usumacinta65-2 ati2p 40-40-40      Start: 17:43:25      End:17:50:21



   usamacinta    | T-El F-Alt Spd Trk   Len   Look  Mode   BW  PL   PRFR  DigDly

      65-2       |  100 27.0  420  65 3.8+2.8  40  ATI2P   40  10   1.30    91



      PI      |  Run Start     CPA       Run End     Target    |HDDR Tape# Drift

Rodriguez, Mol|  17   7.83   17  19.2    17  27.54   17  22.5  | 04008 |-2.1

              | -91  44.50  -91  19.2   -91   0.55  -91  20.8  |________________

  March 2004   17:43:25 17:47:16 17:50:21 ___________ <--GMT

    us2.rdf    ___________ 514000 ___________ ___________ <--IDR (A/B)

               ___________ ___________ ___________ ___________ <--Frame Count

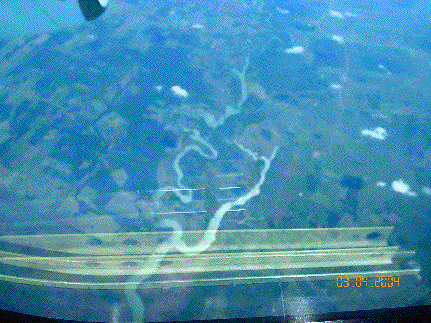

Comments:  Site is Usamacinta.  hydrology program

Mostly clear, smooth lines, light winds. Motion very good.







AIRSAR





AIRSAR







Usumacinta245-1 ati2p 40-40-40      Start: 17:56:17      End:18:02:54





   usamacinta    | T-El F-Alt Spd Trk   Len   Look  Mode   BW  PL   PRFR  DigDly

      245-1      |  100 27.0  420 245 3.8+2.8  40  ATI2P   40  10   1.30    91



      PI      |  Run Start     CPA       Run End     Target    |HDDR Tape# Drift

Rodriguez, Mol|  17  44.68   17  33.4    17  25.00   17  30.1  |04008  |  1.5

              | -91   0.76  -91  26.1   -91  44.79  -91  24.5  |________________

  March 2004   17:56:17 18:00:05 18:02:54 ___________ <--GMT

    us2.rdf    ___________ 602000 ___________ ___________ <--IDR (A/B)

               ___________ ___________ ___________ ___________ <--Frame Count

Comments:  Site is Usamacinta.  hydrology program

Mostly clear and light winds. Motion very good.





AIRSAR



AIRSAR







Tape 04009



Usumacinta65-4 ati2p 40-40-40      Start: 18:09:46      End:18:15:46





   usamacinta    | T-El F-Alt Spd Trk   Len   Look  Mode   BW  PL   PRFR  DigDly

      65-4       |  100 27.0  420  65 3.8+2.8  40  ATI2P   40  10   1.30    91



      PI      |  Run Start     CPA       Run End     Target    |HDDR Tape# Drift

Rodriguez, Mol|  17  11.61   17  23.0    17  31.31   17  26.3  | 04009 | -1.5

              | -91  46.34  -91  21.1   -91   2.37  -91  22.7  |________________

  March 2004   18:09:46 18:12:58 18:15:46 ___________ <--GMT

    us2.rdf    ___________ 41000 ___________ ___________ <--IDR (A/B)

               ___________ ___________ ___________ ___________ <--Frame Count

Comments:  Site is Usamacinta.  hydrology program

Mostly clear and light winds. Motion very good.







AIRSAR



AIRSAR









Usumacinta245-3 ati2p 40-40-40      Start: 18:22:00      End:18:28:37



   usamacinta    | T-El F-Alt Spd Trk   Len   Look  Mode   BW  PL   PRFR  DigDly

      245-3      |  100 27.0  420 245 3.8+2.8  40  ATI2P   40  10   1.30    91



      PI      |  Run Start     CPA       Run End     Target    |HDDR Tape# Drift

Rodriguez, Mol|  17  48.46   17  37.2    17  28.78   17  33.8  |04009|1.5

              | -91   2.58  -91  28.0   -91  46.64  -91  26.3  |________________

  March 2004   18:22:00 18:25:47 18:28:37 ___________ <--GMT

    us2.rdf    ___________ 127000  ___________ ___________ <--IDR (A/B)

               ___________ ___________ ___________ ___________ <--Frame Count

Comments:  Site is Usamacinta.  hydrology program



Decoder crashed at beginning of run (first minute of data). Should be ok, it was well before encountering usumacinta river.

clear and light winds. Motion very good.





AIRSAR



AIRSAR







AIRSAR







Usumacinta155-2 ati2p 40-40-40      Start: 18:37:04      End:18:44:30





   Usumacinta    | T-El F-Alt Spd Trk   Len   Look  Mode   BW  PL   PRFR  DigDly

      155-2      |  100 27.0  420 155 4.2+3.2  40  ATI2P   40  10   1.30    91



      PI      |  Run Start     CPA       Run End     Target    |HDDR Tape# Drift

Rodriguez, Mol|  17  51.90   17  25.2    17   4.76   17  26.7  |04009|0.6

              | -91  43.24  -91  30.2   -91  20.33  -91  26.8  |________________

  March 2004   18:37:04 18:41:14 18:44:30 ___________ <--GMT

    us1.rdf    ___________ 220000 ___________ ___________ <--IDR (A/B)

               ___________ ___________ ___________ ___________ <--Frame Count

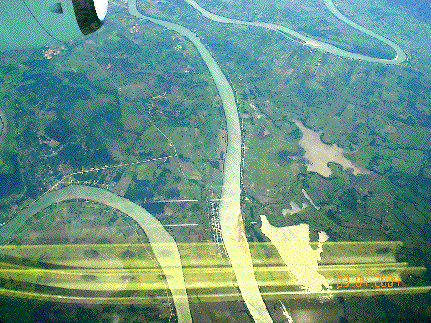

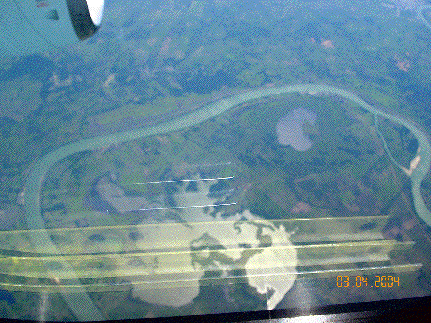

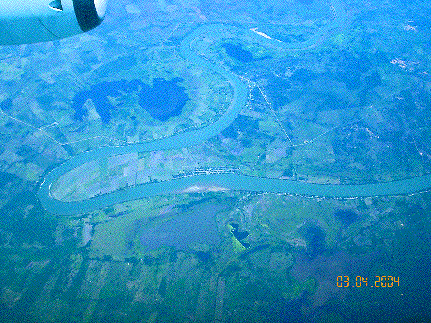

Comments:  Site is Usumacinta river, Mexico, Guatamala.  Site 16, JPL, UPENN

clear and light winds. Motion very good.







AIRSAR







AIRSAR







AIRSAR



AIRSAR







Usumacinta335-1 ati2p 40-40-40      Start: 18:51:0618:     End:18:58:35



   Usumacinta    | T-El F-Alt Spd Trk   Len   Look  Mode   BW  PL   PRFR  DigDly

      335-1      |  100 27.0  420 335 4.2+3.2  40  ATI2P   40  10   1.30    91



      PI      |  Run Start     CPA       Run End     Target    |HDDR Tape# Drift

Rodriguez, Mol|  17   0.58   17  27.3    17  47.73   17  25.8  |04009|-0.2

              | -91  13.58  -91  26.5   -91  36.47  -91  30.0  |________________

  March 2004   18:51:06 18:55:19 18:58:35 ___________ <--GMT

    usa.rdf    ___________ 318000 ___________ ___________ <--IDR (A/B)

               ___________ ___________ ___________ ___________ <--Frame Count

Comments:  Site is Usumacinta river, Mexico, Guatamala.  Site 16, JPL, UPENN

clear and light winds. Motion very good.









Chicxulub60-1 xti2p 40-40-40      Start: 19:24:04      End: 19:33:50



    chicxulub    | T-El F-Alt Spd Trk   Len   Look  Mode   BW  PL   PRFR  DigDly

      60-1       |  100 27.0  420  60 5.4+4.4  58  XTI2P   20  10   1.00    91



      PI      |  Run Start     CPA       Run End     Target    |HDDR Tape# Drift

   Kobrick    |  20  12.32   20  31.2    20  46.47   20  37.2  | 04009 |-1.7

              | -89  43.46  -89   8.9   -88  40.73  -89  12.6  |________________

  March 2004   19:24:04 19:29:40 19:33:50 ___________ <--GMT

    chx.rdf    ___________ 436000 ___________ ___________ <--IDR (A/B)

               ___________ ___________ ___________ ___________ <--Frame Count

Comments:  Site is Chicxulub Impact, Mexico.  SRTM void filling



Partly cloudy.  Light winds.  Relatively smooth, a little bumpy at the end.







AIRSAR







AIRSAR







Yucatan320-1 xti1p 40-40-40      Start:  19:46:30     End: 19:57:54



     yucatan     | T-El F-Alt Spd Trk   Len   Look  Mode   BW  PL   PRFR  DigDly

      320-1      |   60 26.0  420 320 5.7+4.7  45  XTI1P   40  10   1.00    91



      PI      |  Run Start     CPA       Run End     Target    |HDDR Tape# Drift

  W. Ringle   |  19  43.86   20  14.8    20  40.32   20  12.0  | 04009 |-0.5

              | -89   5.05  -89  32.4   -89  55.21  -89  36.0  |________________

  March 2004   19:46:30 19:53:09 19:57:54 ___________ <--GMT

    yu1.rdf    ___________ 573000 ___________ ___________ <--IDR (A/B)

               ___________ ___________ ___________ ___________ <--Frame Count

Comments:  Site is Kluic Labna, Xocnaceh, Yucatan, Mexico.  Site 20



Data started early, still some motion at beginning as coming out of turn.

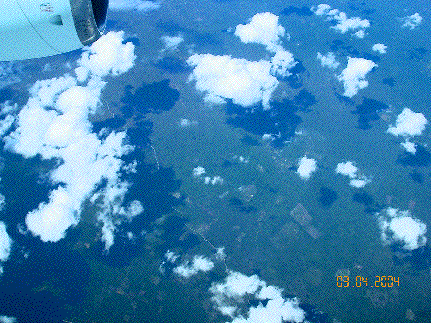

Puffy clouds, light winds.



AIRSAR





AIRSAR







Tape 04010







Chunchucmil310-2 xti1p 40-40-40      Start:20: 09:15      End:20: 19:05



   Chunchucmil   | T-El F-Alt Spd Trk   Len   Look  Mode   BW  PL   PRFR  DigDly

      310-2      |    0 26.0  420 310 5.4+4.4  45  XTI1P   40  10   1.00    91



      PI      |  Run Start     CPA       Run End     Target    |HDDR Tape# Drift

   K. Pope    |  20  24.53   20  48.8    21   8.42   20  45.4  | 04010 |1.4

              | -89  37.90  -90   8.5   -90  33.48  -90  11.5  |________________

  March 2004   20:09:15 20:15:45 20:19:05 ___________ <--GMT

    chu.rdf    ___________ 73000 ___________ ___________ <--IDR (A/B)

               ___________ ___________ ___________ ___________ <--Frame Count

Comments:  Site is Chunchucmil Mexico.  Site 18, GeoEco Arc Research



Puffy clouds, light winds, smooth line.







AIRSAR



AIRSAR



AIRSAR







Chunchucmil130-2 xti1p 40-40-40      Start: 20:25:50      End: 20:35:33



   Chunchucmil   | T-El F-Alt Spd Trk   Len   Look  Mode   BW  PL   PRFR  DigDly

      130-2      |    0 26.0  420 130 5.4+4.4  45  XTI1P   40  10   1.00    91



      PI      |  Run Start     CPA       Run End     Target    |HDDR Tape# Drift

   K. Pope    |  20  53.30   20  29.1    20   9.44   20  32.5  | 04010 |-2.7

              | -90  56.66  -90  26.0   -90   1.14  -90  23.0  |________________

  March 2004   20:25:50 20:31:27 20:35:33___________ <--GMT

    chu.rdf    ___________ 205000 ___________ ___________ <--IDR (A/B)

               ___________ ___________ ___________ ___________ <--Frame Count

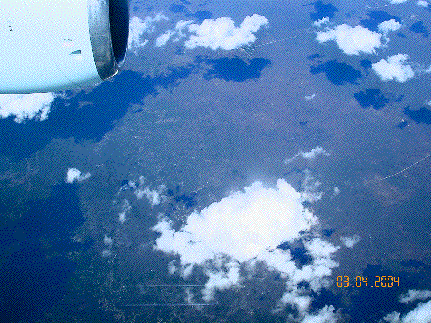

Comments:  Site is Chunchucmil Mexico.  Site 18, GeoEco Arc Research



Puffy clouds, smooth line.  Over water first 20km or so.





AIRSAR



AIRSAR





AIRSAR







Chunchucmil310-3 xti1p 40-40-40      Start:  20:41:49     End: 20:51:37



   Chunchucmil   | T-El F-Alt Spd Trk   Len   Look  Mode   BW  PL   PRFR  DigDly

      310-3      |    0 26.0  420 310 5.4+4.4  45  XTI1P   40  10   1.00    91



      PI      |  Run Start     CPA       Run End     Target    |HDDR Tape# Drift

   K. Pope    |  20  20.23   20  44.5    21   4.12   20  41.1  |04010|1.8

              | -89  41.75  -90  12.3   -90  37.31  -90  15.3  |________________

  March 2004   20:41:49 20:47:12 20:51:37 ___________ <--GMT

    chu.rdf    ___________ 329000 ___________ ___________ <--IDR (A/B)

               ___________ ___________ ___________ ___________ <--Frame Count

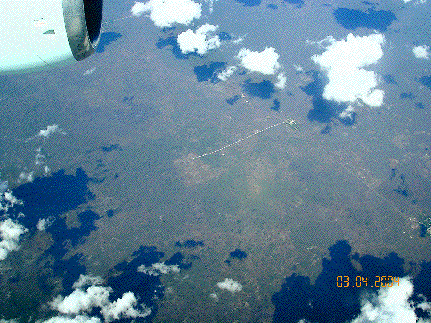

Comments:  Site is Chunchucmil Mexico.  Site 18, GeoEco Arc Research



Puffy clouds, smooth line.







AIRSAR







AIRSAR





Chunchucmil130-1 xti1p 40-40-40      Start:20: 57:52      End: 21:07:42



   Chunchucmil   | T-El F-Alt Spd Trk   Len   Look  Mode   BW  PL   PRFR  DigDly

      130-1      |    0 26.0  420 130 5.4+4.4  45  XTI1P   40  10   1.00    91



      PI      |  Run Start     CPA       Run End     Target    |HDDR Tape# Drift

   K. Pope    |  20  57.60   20  33.4    20  13.74   20  36.8  |04010 |-1.9

              | -90  52.85  -90  22.1   -89  57.30  -90  19.2  |________________

  March 2004   20:57:52 21:03:17 21:07:42 ___________ <--GMT

    chu.rdf    ___________ 460000 ___________ ___________ <--IDR (A/B)

               ___________ ___________ ___________ ___________ <--Frame Count

Comments:  Site is Chunchucmil Mexico.  Site 18, GeoEco Arc Research





Puffy clouds, smooth line.





AIRSAR





Northbelize30-1 xti1p 40-40-40    Start: 21:34:47   End:21:43:44





   northbelize   | T-El F-Alt Spd Trk   Len   Look  Mode   BW  PL   PRFR  DigDly

      30-1       |   40 26.0  420  30 5.0+4.0  45  XTI1P   40  10   1.00    90



      PI      |  Run Start     CPA       Run End     Target    |HDDR Tape# Drift

   K. Pope    |  17  41.13   18  11.4    18  35.57   18  13.6  |04010 |-2.1

              | -88  41.73  -88  23.5   -88   8.86  -88  27.5  |________________

  March 2004   21:34:47 21:39:43 21:43:44 ___________ <--GMT

    nbe.rdf    ___________ 583000 ___________ ___________ <--IDR (A/B)

               ___________ ___________ ___________ ___________ <--Frame Count

Comments:  Site is Northern Belize.  Site 19



Cloudy, especially last half of line.  Light winds. smooth flight.





AIRSAR





Tape 04011





Northbelize210-1 xti1p 40-40-40 Start:21:49:45    End:21:58:38







   northbelize   | T-El F-Alt Spd Trk   Len   Look  Mode   BW  PL   PRFR  DigDly

      210-1      |   40 26.0  420 210 5.0+4.0  45  XTI1P   40  10   1.00    91



      PI      |  Run Start     CPA       Run End     Target    |HDDR Tape# Drift

   K. Pope    |  18  48.85   18  18.6    17  54.42   18  16.4  | 04011|2.7

              | -88  18.19  -88  36.5   -88  51.12  -88  32.6  |________________

  March 2004   21:49:45 21:54:42 21:58:38 ___________ <--GMT

    nbe.rdf    ___________ 66000 ___________ ___________ <--IDR (A/B)

               ___________ ___________ ___________ ___________ <--Frame Count

Comments:  Site is Northern Belize.  Site 19



Cloudy.  Light winds, smooth flight.





AIRSAR







slaselva350-1  xti1p 40-40-40   Start:23:21:28             End:23:30:35





    slaselva     | T-El F-Alt Spd Trk   Len   Look  Mode   BW  PL   PRFR  DigDly

      350-1      |  100 27.0  420 350 5.4+4.4  45  XTI1P   40  10   1.00    91



      PI      |  Run Start     CPA       Run End     Target    |HDDR Tape# Drift

 David Clark  |   9  48.63   10  25.7    10  55.92   10  25.0  |04011 |-0.7

              | -83  43.46  -83  50.1   -83  55.44  -83  54.4  |________________

  March 2004   23:21:28 23:26:43 23:30:35 ___________ <--GMT

    cla.rdf    ___________ 187000 ___________ ___________ <--IDR (A/B)

               ___________ ___________ ___________ ___________ <--Frame Count

Comments:  Site is La Selva area, Costa Rica.  Site 1, university of missouri

Cloudy.  Light winds, a little bumpy.









AIRSAR



AIRSAR







slaselva170-1 xti1p 40-40-40    Start: 23: 37:26         End:23:47:06





    slaselva     | T-El F-Alt Spd Trk   Len   Look  Mode   BW  PL   PRFR  DigDly

      170-1      |  100 27.0  420 170 5.4+4.4  45  XTI1P   40  10   1.00    91



      PI      |  Run Start     CPA       Run End     Target    |HDDR Tape# Drift

 David Clark  |  10  59.37   10  22.3     9  52.09   10  23.0  |04011 |0.1

              | -84  16.59  -84  10.0   -84   4.60  -84   5.6  |________________

  March 2004   23:37:26 23:42:43 23:47:06 ___________ <--GMT

    cla.rdf    ___________ 308000 ___________ ___________ <--IDR (A/B)

               ___________ ___________ ___________ ___________ <--Frame Count

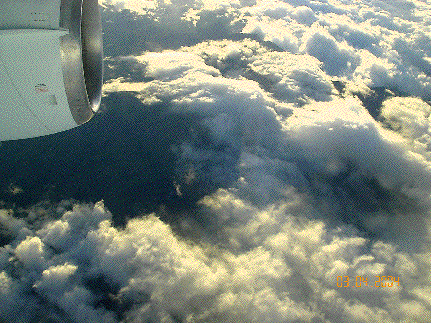

Comments:  Site is La Selva area, Costa Rica.  Site 1, university of missouri



Partly cloudy at beginning of line.  A little bumpy.







AIRSAR



AIRSAR





AIRSAR





Landing occurred at  00:05:38( 6:05:38CST).
